LOCK SYSTEM

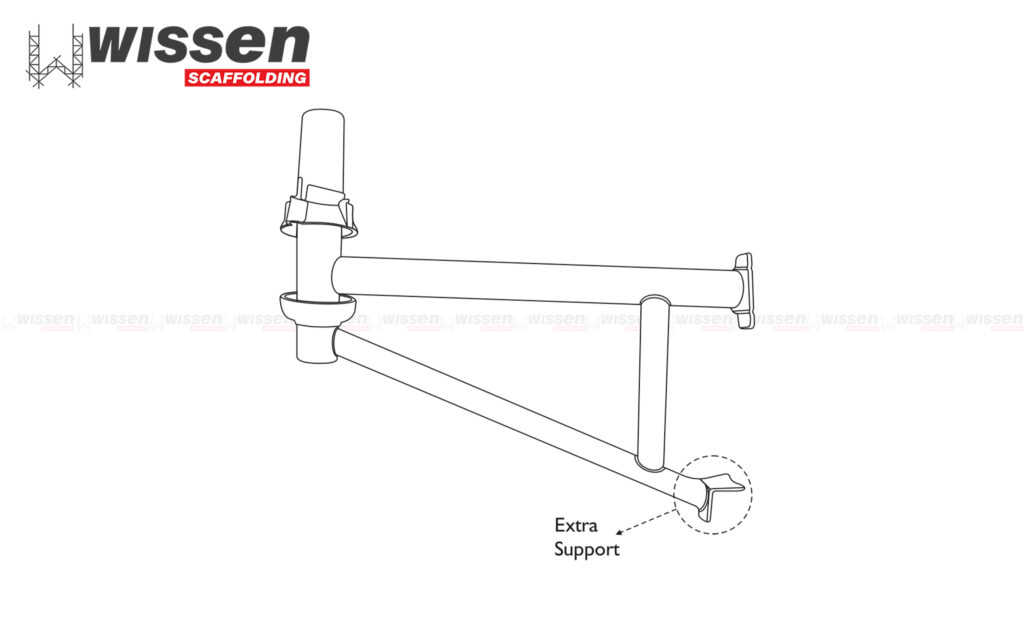

TUBULAR HOP-UP BRACKETS

Hop-up Brackets are made from 48.3mm diameter high grade steel tube and are used to increase the width of working platform used in conjuction with transoms intermediate transoms or inside-board transoms.Thay incorporate a cup joint at the outside end to allow the fitting of an inside ledger which links the hop-up brackets and supports transoms intermedi- ate transoms.

Code	Type	Weight (kg)
WLS-01-A	1 Board	1.800
WLS-01B	2 Board	6.300
WLS-01-C	3 Board	7.700

SWIVEL FACE BRACE

Diagonal braces are made from 48.3mm diameter high grade steel tube with a swivel blade at each end. They are placed diagonally from ledger to ledger, next to the standards to which they are fitted.

Code	Length (m)	Weight (kg)
WLS-02-A	2.5 x 20	11.500
WLS-02-B	2.50 x 15	10.700
WLS-02-C	1.80 x 2.0	9.800
WLS-02-D	1.80 x 1.5	8.700

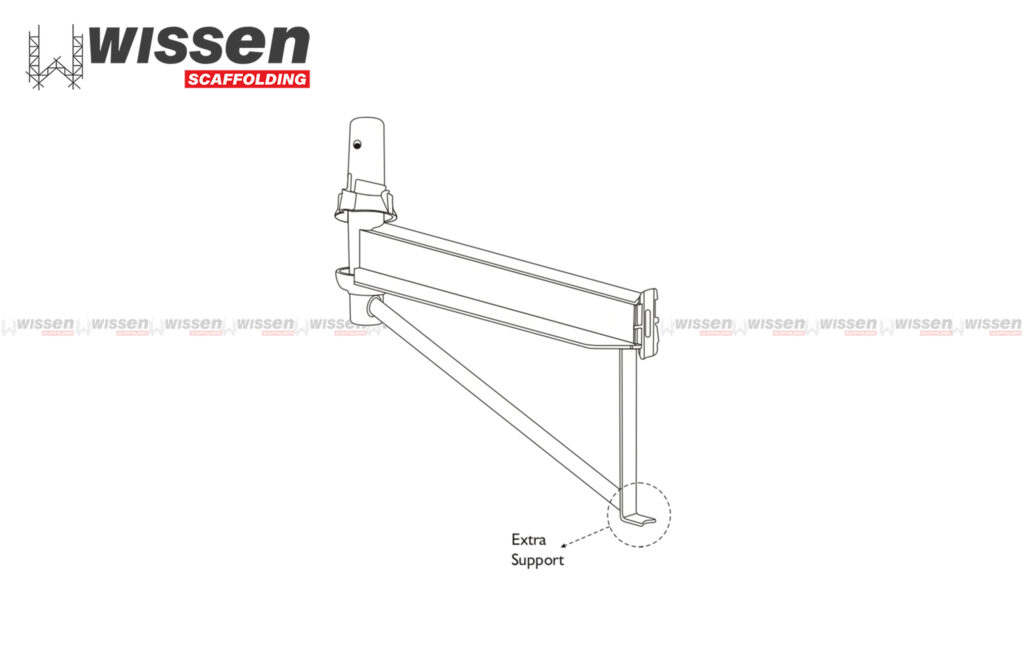

BATTEN HOP-UP BRACKETS

Hop-up Brackets are made from 48.3mm diameter high grade steel tube and are used to increase the width of working platform used in conjuction with transoms / intermediate transoms or inside-board transoms. Thay incorporate a cup joint at the outside end to allow the fitting of an inside ledger which links the hop-up brackets andsupports transoms / intermedi- ate transoms.

Code	Type	Weight (kg)
WLS-03-A	1 Board	2.300
WLS-03-B	2 Board	6.600
WLS-03-C	3 Board	7.600

DECKING BEAM

Decking Beams are designed with 100mm top flange which gives more support to the plywood. Tongue of the drop heads are inserted in the slots of the decking beam at both ends.

Code	Type	Weight (kg)
WLS-04-A	1.200	13.400
WLS-04-B	1.800	20.000
WLS-04-C	2.500	28.000

INFILL BEAM

They are manufactured from 2mm thick top quality steel sheet and are designed to be used with the decking beams and are spaced out at predetermined centres to support the plywood.

Code	Length (m)	Weight (kg)
WLS-05-A	0.900	5.230
WLS-05-B	1.200	6.700
WLS-05-C	1.500	8.700
WLS-05-D	1.700	9.800

DROPHEAD

The quick action drophead is designed to fit on standard props or adaptors for cuplock scaffolding. The primary head remains in contact with the concrete while the secondary head and its supporting wedge arte released by a single hammewr blow. The deophead has a load carrying capacity of 40kN.

Code	For Tube OD (m)	Weight (kg)
WLS-06	48.2	5.000

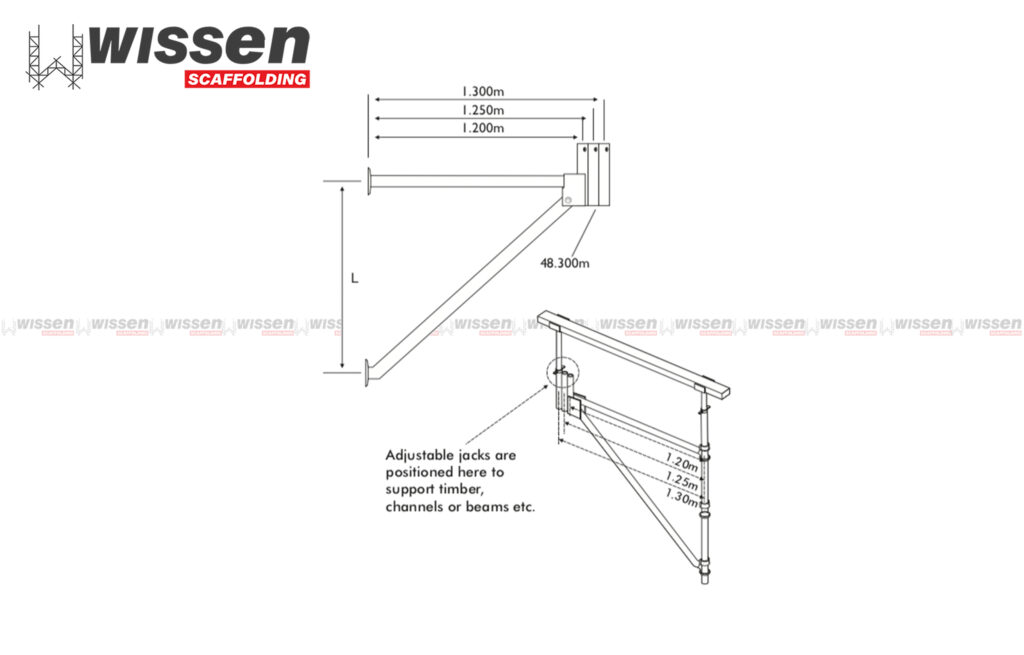

CANTILEVER FRAME

This frame has ledger blades to be fitted into Cuplock standards at one end and with provision for accepting jacks in three positions at the other end at 1.2m, 1.25m and 1.3m from centerline of the standard.

Code	Length (m)	Weight (kg)
WLS-07-A	1.000	14.500
WLS-07-B	1.500	16.500

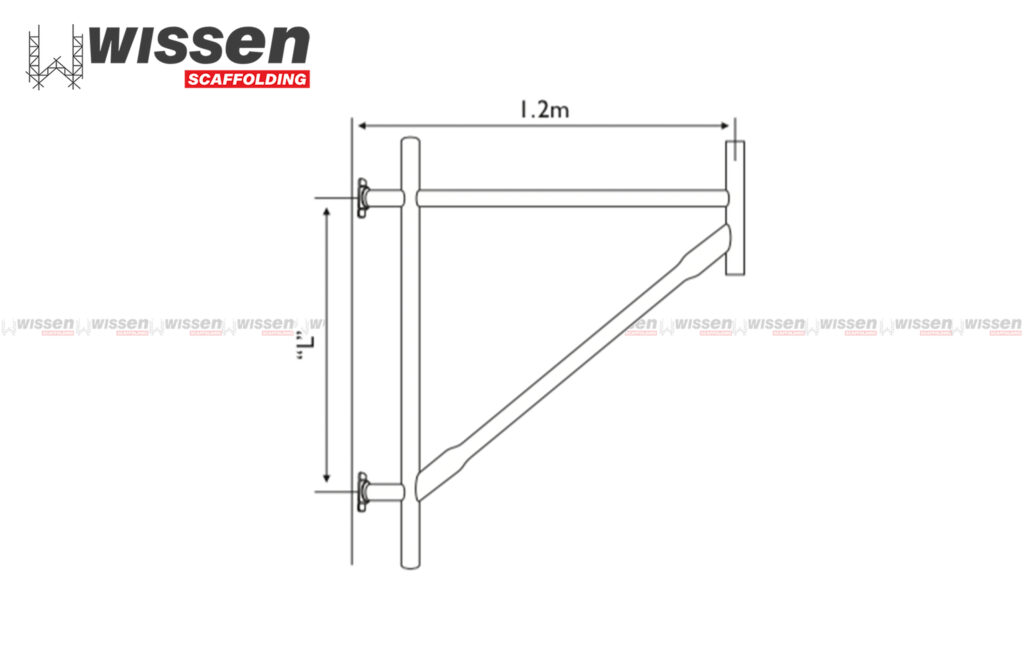

CANTILEVER BEAM FRAME

Code	Length (m)	Weight (kg)
WLS-08-A	1.000	-
WLS-08-B	1.500	-

RETURN TRANSOM

Return Transom is used at the end of a scaffold run where it meets another scaffold running at right angles to it. The U-shaped return section of the transom hooks over the ledger of the adjacent scaffold, closing off the gap between the two scaffold.

Code	Length (m)	Weight (kg)
WLS-09	-	8.500

TOP CUP

The captive mobile cups are made out of Malleable cast iron to ensure rough site handling

Code	Lug	For Tube OD (mm)	Weight (kg)
WLS-10-A	3	60.0	0.440
WLS-10-B	4	60.0	0.440
WLS-10-C	3	48.3	0.430
WLS-10-D	4	48.3	0.430

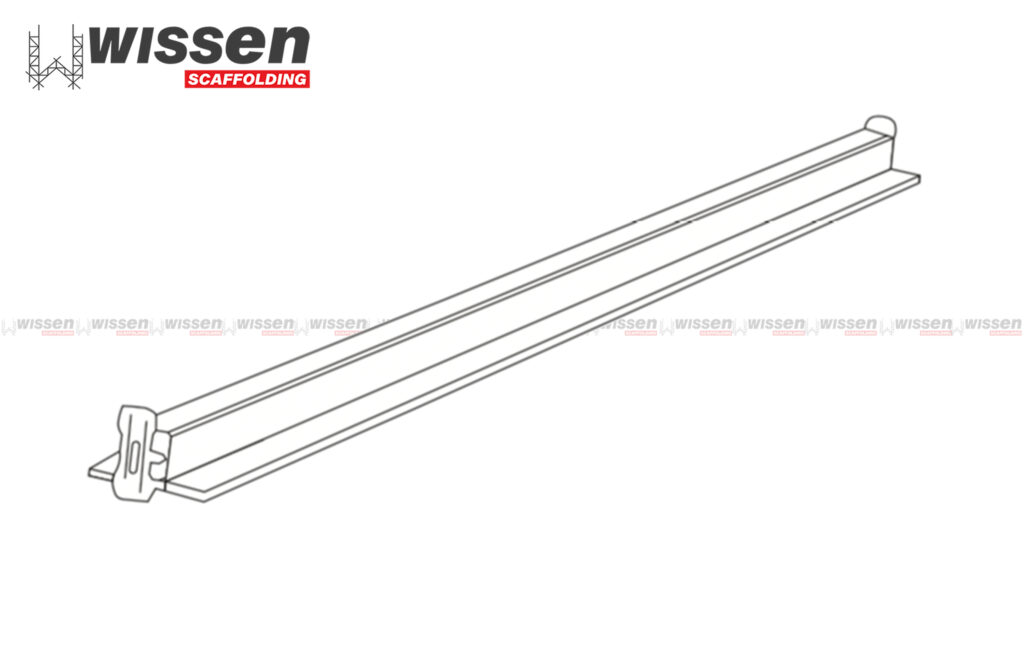

OMEGA TRANSOM

Omega Transoms are manufactured from press bent section with flange type extensions on both sides provides a strong support for working platform with Cuplock steel battens.
