CUPLOCK ACCESSORIES

Bottom Cup

Bottom Cups are pressed from high quality steel and are welded on vertical.

Sheet Thickness: 4.0mm

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-01-A 60.0 0.350 0.337 0.335 0.330
WCA-01-B 48.3 0.213 0.204 0.203 0.200

Sheet Thickness: 4.5mm

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-02-A 60.0 0.419 0.403 0.401 0.395
WCA-02-B 48.3 0.270 0.260 0.259 0.255

Sheet Thickness: 5.0mm

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-03-A 60.0 0.456 0.439 0.436 0.430
WCA-03-B 48.3 0.297 0.286 0.284 0.280

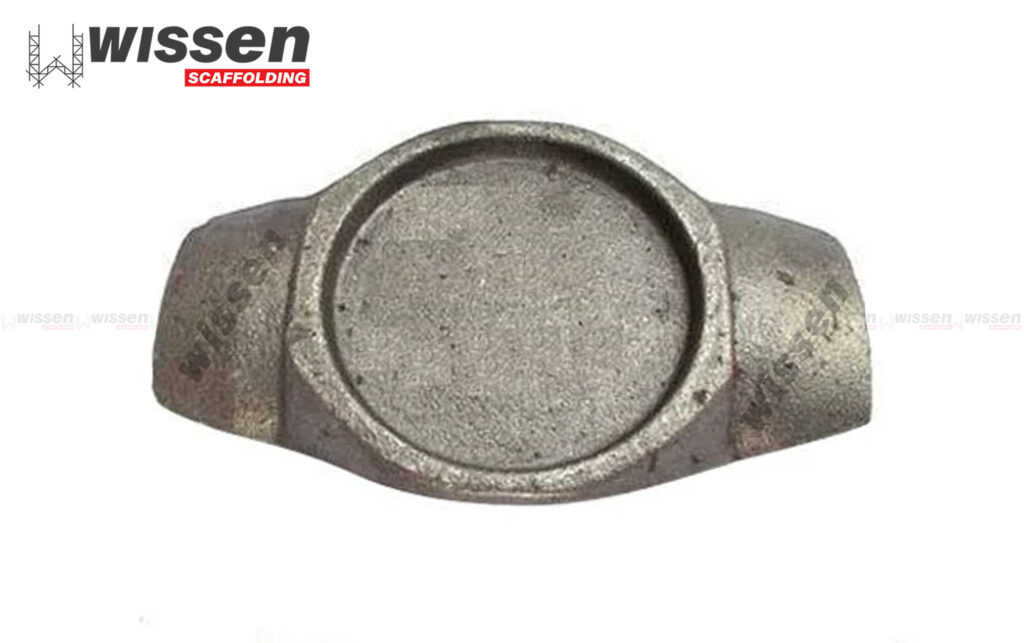

Ledger Blade - Closed

Material: SAE-1010
Finish: Hot Dip Galvanized/Zinc/Self

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-04-A 60.0 0.295 0.285 0.285 0.270
WCA-04-B 48.3 0.234 0.224 0.223 0.220

Ledger Blade - Punched

Material: SAE-1010
Finish: Hot Dip Galvanized/Zinc/Self

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-05-A 60.0 0.290 0.275 0.275 0.260
WCA-05-B 48.3 0.224 0.214 0.213 0.210

Top Cup

The Captive mobile cup are made out of malleable cast iron to ensure rough site handling but we are providing Drop Forged / SG casting top cup.

3 LUG

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-06-A 48.3 0.460 0.435 0.440 0.420
WCA-06-B 48.3 0.460 0.435 0.440 0.420
WCA-06-C 60.0 0.600 0.578 0.585 0.555

4 LUG

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-07-A 48.3 0.465 0.545 0.455 0.430
WCA-07-B 48.3 0.465 0.445 0.455 0.430
WCA-07-B 60.3 0.735 0.700 0.710 0.670

F - FORGED, C-CASTED

Spigot 38

Material: S-235
Finish: Hot Dip Galvanized/Zinc/Self

Length: 300mm

Code For Tube OD (mm) Weight (kg)
Hot Dip Painted Zinc Self
WCA-08-A 3.0 0.940 0.898 0.890 0.880
WCA-08-B 3.2 1.000 0.940 0.940 0.930
WCA-08-C 4.0 1.190 1.140 1.140 1.120
