KWIK-STAGE SYSTEM

STANDARDS

The standard is the vertical member of the scaffold with a spigot (either round or box type) at one end for accurate alignment. A series of 'V' locating lugs are welded on the tube for the attachment of ledgers, transoms, and auxiliary components. Open ended standards and loose spigots are also available.

Code Length (m) Weight (kg)
WKS-01-A 0.500 3.600
WKS-01-B 1.000 6.400
WKS-01-C 1.500 9.400
WKS-01-D 2.000 11.800
WKS-01-E 2.500 15.000
WKS-01-F 3.000 17.400

BRIDGING LEDGER

Made from standard tube to span between two 2.4m bays to give clear access or to avoid obstruction.

Code Length (m) Weight (kg)
WKS-02 4.900 32.000

BRACES

Braces are manufactured from 3.2mm tube with Swivel Wedge device at both ends to fit in the “V” precessing on the Standard.

Code Length (m) Weight (kg)
WKS-03-A 2.740 10.900
WKS-03-B 3.540 13.100

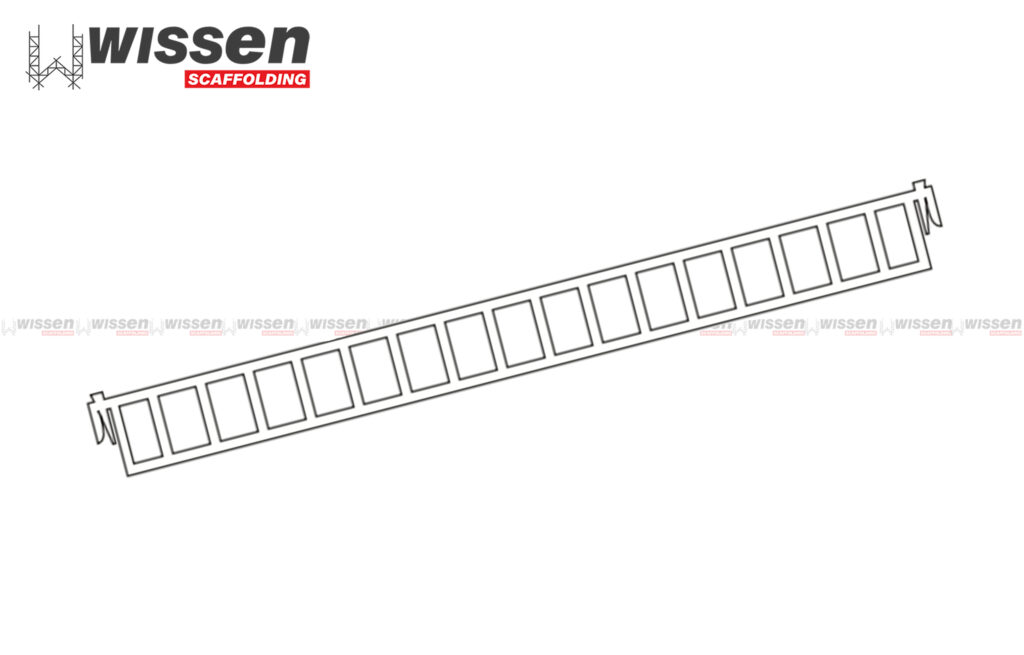

BRIDGING LEDGER

Made from standard tube to span between two 2.4m bays to give clear access or to avoid obstruction.

Code Length (m) Weight (kg)
WKS-04 7.200 57.000

BRIDGING LEDGER

Made from standard tube to span between two 2.4m bays to give clear access or to avoid obstruction.

Code Length (m) Weight (kg)
WKS-05-A 0.700 5.600
WKS-05-B 0.800 5.900
WKS-05-C 1.200 7.900
WKS-05-D 1.800 11.600

HOP UP BRACKET

Hop up bracket is used to extend the scaffold by cantilevering for an additional 1, 2 and 3 board platform.

Code Length (m) Weight (kg)
WKS-06-A 1 Board 2.300
WKS-06-B 2 Boards 5.900
WKS-06-C 3 Boards 9.500

TOE BOARD BRACKET

Clamps to the standard with a captive wedge to hold the batten toe board vertically in place.

Code Weight (kg)
WKS-07 0.780

END TOE BOARD BRAKCET

Fits into 'V' locating lugs on the standard at the end of a platform to hold the end batten toe board vertically in place.

Code Weight (kg)
WKS-08 1.180

Double Coupler - Standard

The Standard is the vertical member of the scaffold with a spigot (either round or box type) at one end for accurate alignment. A series of “V” locating lugs are welded on the tube for the attachment of ledgers, transoms and auxiliary components. Open ended standards and loose spigots are also available.

Tube: 48.3 x 3.2mm Thick

Code Length(m) Weight (kg)
Painted Self
WKS-09-A 0.500 2.390 2.300
WKS-09-B 1.000 4.780 4.600
WKS-09-C 1.500 7.176 6.900
WKS-09-D 2.000 9.570 9.200
WKS-09-E 2.500 11.960 11.500
WKS-09-F 3.000 14.300 13.750

Ledger

The Ledger is used to connect the standard in a longitudinal direction. It is made from scaffolding with wedge 'Banana Type' fixing at each end which fits in the 'V' locating lugs on the standard. The ledger is also used as a guardrail.

C Pressing

Tube: 48.3 x 3.2mm Thick Sheet Thickness: 6mm

Code Length(m) Weight (kg)
Painted Self
WKS-10-A 0.700 3.360 3.200
WKS-10-B 0.800 3.780 3.600
WKS-10-C 1.200 5.250 5.000
WKS-10-D 1.800 7.350 7.000
WKS-10-E 2.400 9.660 9.200
WKS-10-F 2.500 9.925 9.450

Banana Pressing

Tube: 48.3 x 3.2mm Thick Sheet Thickness: 6mm

Code Length(m) Weight (kg)
Painted Self
WKS-11-A 0.700 3.465 3.300
WKS-11-B 0.800 3.850 3.650
WKS-11-C 1.200 5.250 5.000
WKS-11-D 1.800 7.550 7.200
WKS-11-E 2.400 9.800 9.300
WKS-11-F 2.500 10.200 9.700

Transoms

Transom is either made of back to back angles or T-shaped with same fixing device on each end as the ledger. They are used to carry 3 to 5 numbers of steel or timber battens and toe board.

C Pressing

Tube: 48.3 x 3.2mm Thick Sheet Thickness: 6mm

Code Length(m) Weight (kg)
Painted Self
WKS-12-A 0.500 4.300 4.200
WKS-12-B 0.700 5.775 5.500
WKS-12-C 0.800 6.090 5.800
WKS-12-D 1.200 9.251 8.810

C-PRECESSING

Code Weight (kg)
WKS-13 0.247

V-PRECESSING

Code Weight (kg) Sheet Thickness
WKS-14 0.110 4 mm

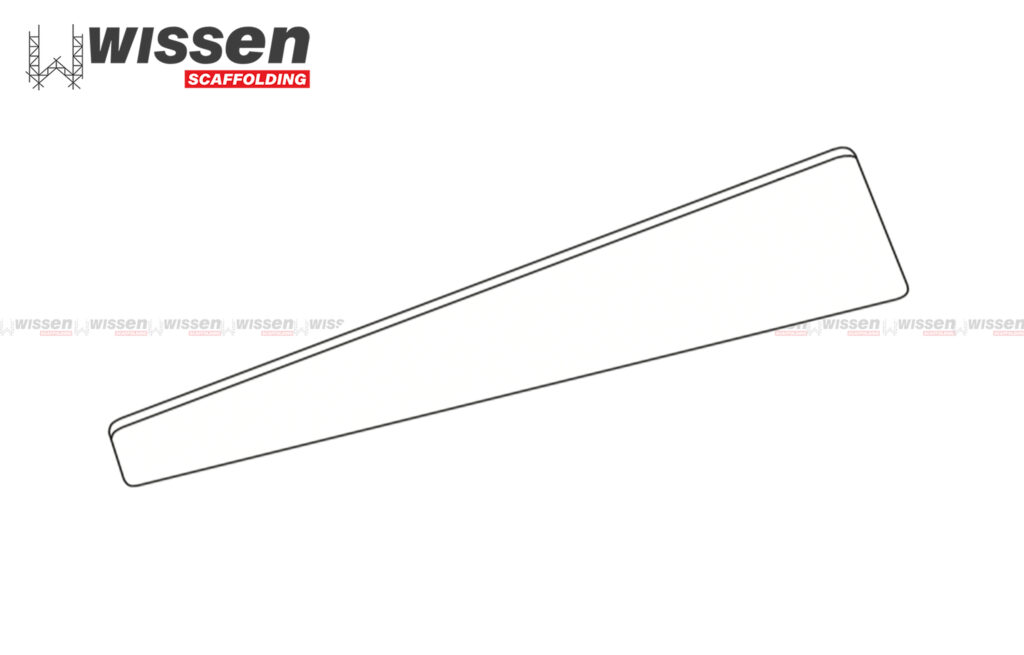

WEDGE

Code Weight (kg)
WKS-15 0.210

U-PRECESSING

Code Weight (kg)
WKS-16 0.220

BANANA PRECESING

Code Weight (kg)
WKS-17 0.115

GUIDING PIN

Code Weight (kg)
WKS-18 -
