FROM WORK
THRU TIE SYSTEM
WING NUT 2 LUG - CASTED
WFW-01
Weight : 0.260 kg.
WING NUT 2 LUG - CASTED
WFW-02
Weight : 0.350 kg.

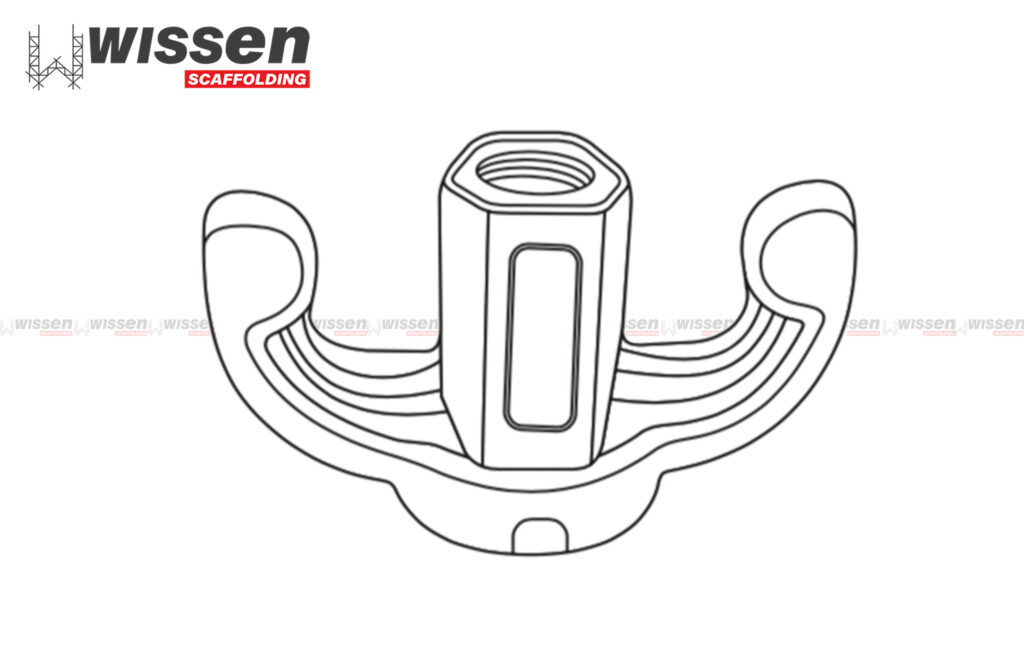

WING NUT 2 LUG - FORGED
WFW-03
Weight : 0.350 kg.
ANCHOR NUT 3 LUG - FORGED
WFW-04
Weight : 0.680 kg.

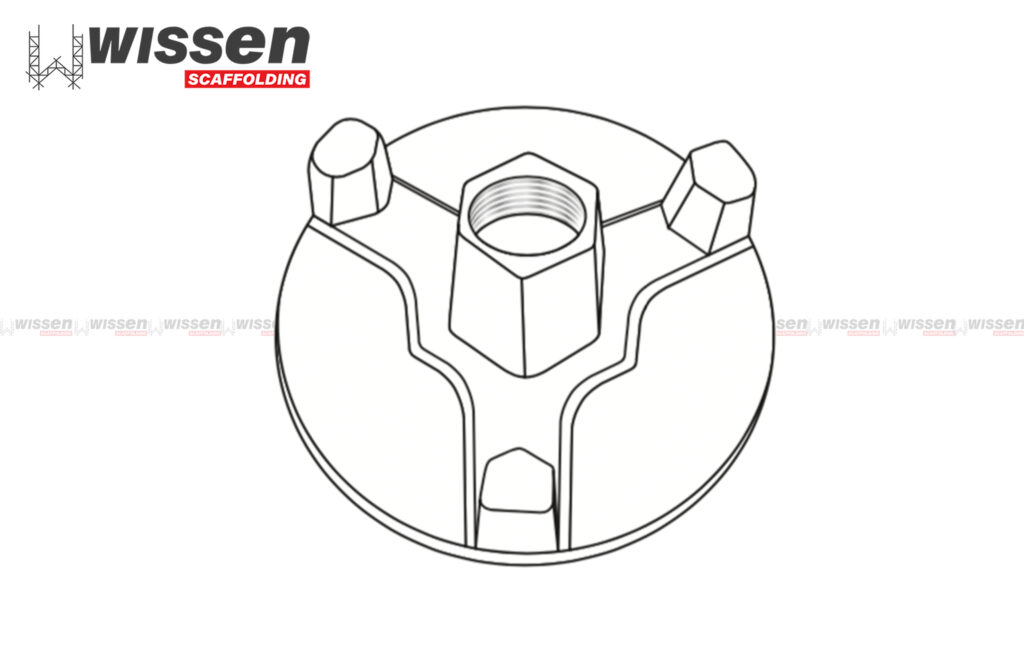

ANCHOR NUT 3 LUG - CASTED
WFW-05
Weight : 0.630 kg.

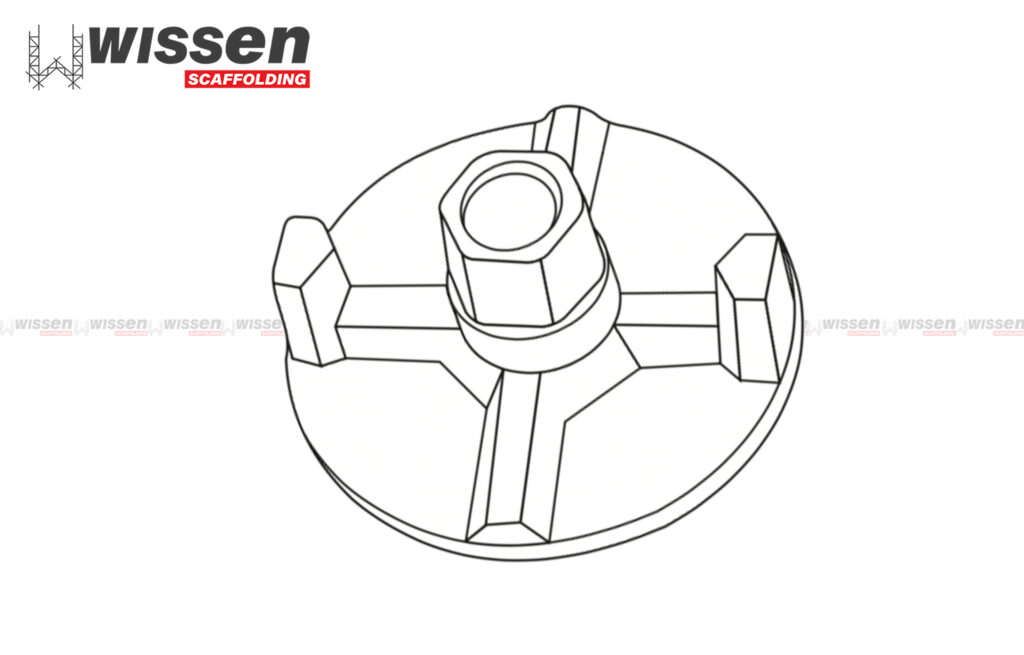

ANCHOR NUT 3 LUG - FORGED
WFW-06
Weight : 0.520 kg.
Wing Nut 15/17
Material: SG 450/12
Finish Zinc / Self
Sheet Thickness: 4.0mm
| Code | Type | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-07 | 2 Lug Casted | 0.275 | 0.260 |
Wing Nut 15/17
Material: SAC 1010
Finish Zinc / Self
| Code | For Tube OD (mm) | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-08 | 2 Lug Casted | 0.370 | 0.350 |
Wing Nut 15/17
Material: SG 450/12
Finish Zinc / Self
| Code | Type | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-09 | 2 Lug Casted | 0.370 | 0.350 |
Anchor Nut 15/17
Material: SG 450/12
Finish Zinc / Self
| Code | Type | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-10 | 2 Lug Casted | 0.540 | 0.520 |

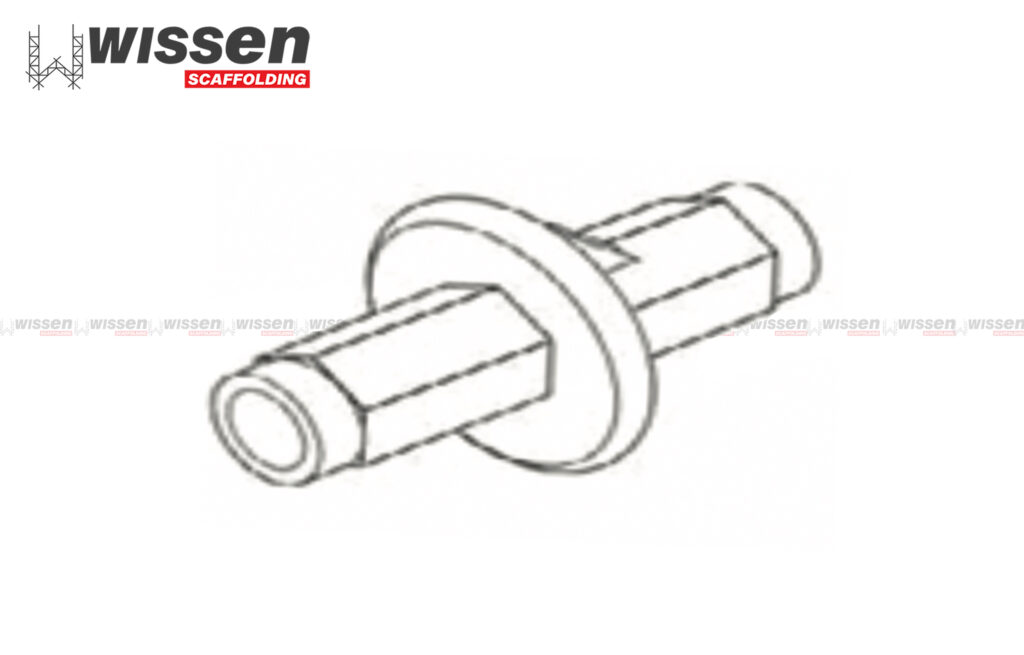

Water Barrier With Disc 15/17
Material: SG 450/12
Finish Zinc / Self
| Code | Type | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-11 | 2 Lug Casted | 0.53 | 0.500 |
Tie Rod
Material: EN 8 / MS
Finish Zinc / Self
| Code | Length(m) | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-12-A | 1.000 | 1.612 | 1.550 |
| WFW-12-B | 2.000 | 3.224 | 3.100 |
| WFW-12-C | 3.000 | 4.836 | 4.650 |
| WFW-12-D | 4.000 | 6.448 | 6.200 |
| WFW-12-E | 5.000 | 8.060 | 7.750 |
| WFW-12-F | 6.000 | 9.672 | 9.300 |

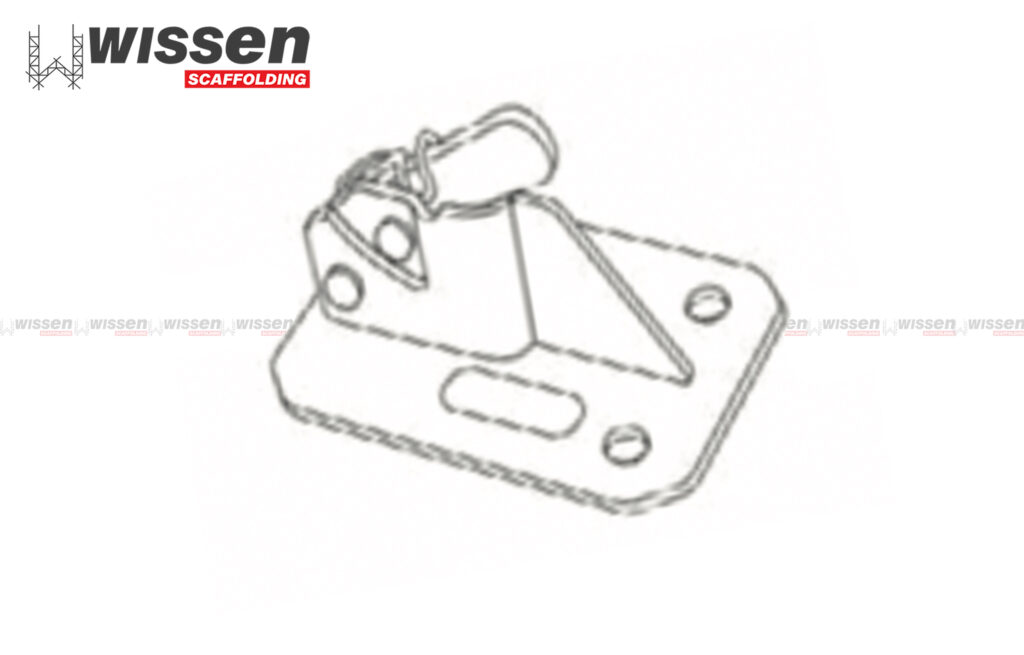

Rapid Clamp
Material: S-235
Finish: Hot Dip Galvanized / Zinc / Self
| Code | Weight (kg) | ||
|---|---|---|---|
| Hot Dip | Zink | Self | |
| WFW-13 | 0.477 | 0.457 | 0.450 |
Water Plate
Material: S-235
Finish: Zinc / Self
| Code | Size(LxWxT) (mm) | Weight (kg) | |
|---|---|---|---|
| Zinc | Self | ||
| WFW-14-A | 120x120x10 | 1.155 | 1.100 |
| WFW-14-B | 150x150x10 | 1.785 | 1.700 |
WATER BARRIER
WFW-15
Weight : 0.540 kg.

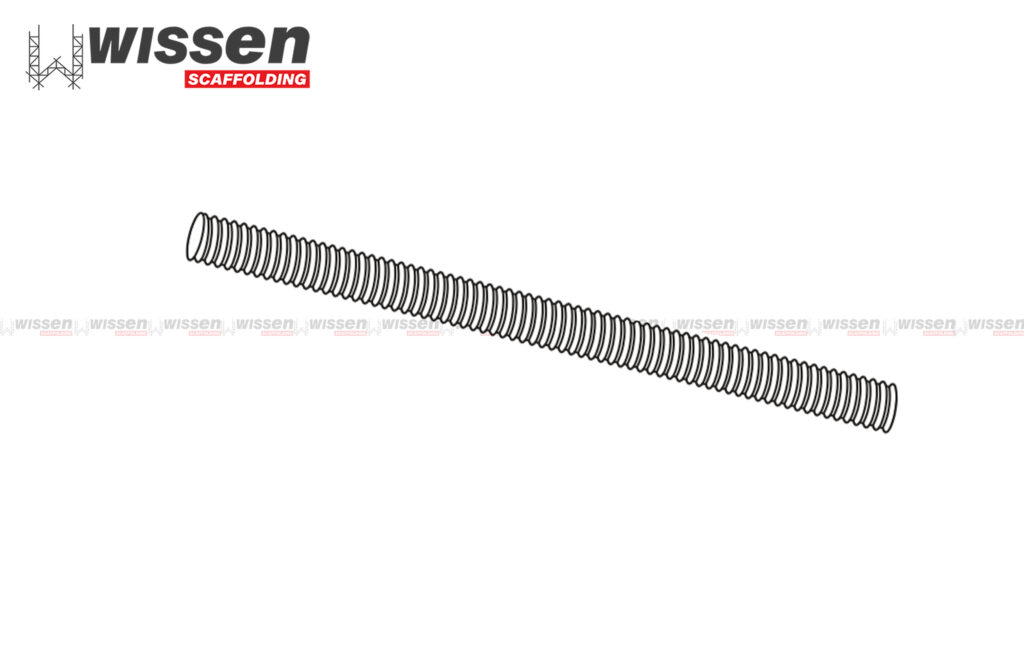

TIE BAR - 15/17mm
WFW-16
Weight : 1.5 kg. per meter
WALLER PLATE
WFW-17
Weight : 0.550 kg.

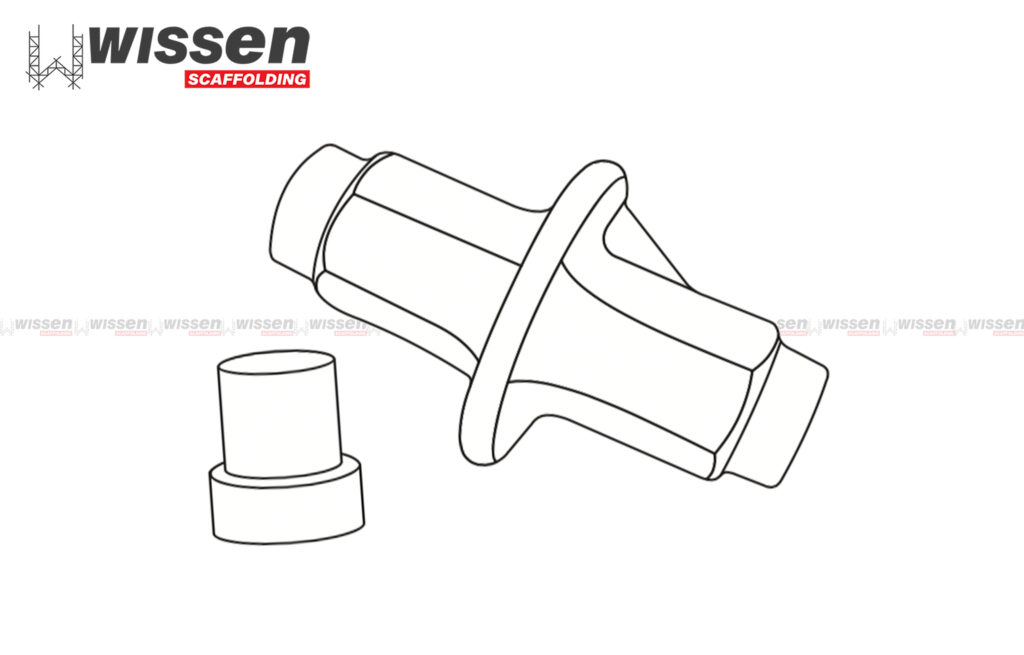

BARRIER WITH DISK
WFW-18
Weight : 0.522 kg.
WALLER PLATE
WFW-19
Weight : 1.070 kg.

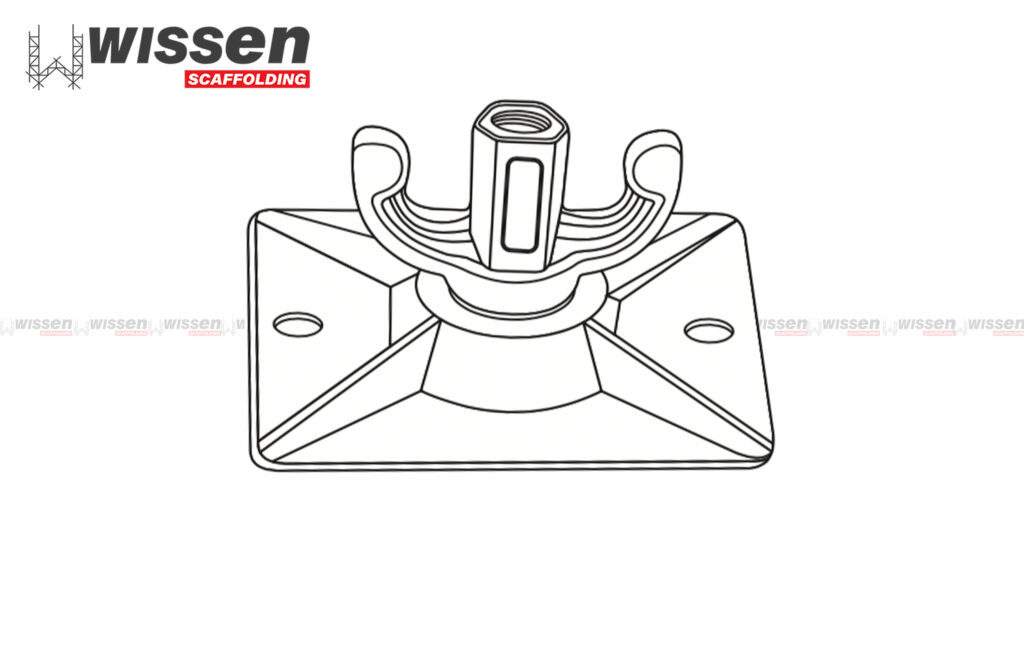

WALLER PLATE - WITH WING NUT
WFW-20
Weight : 1.4 kg.

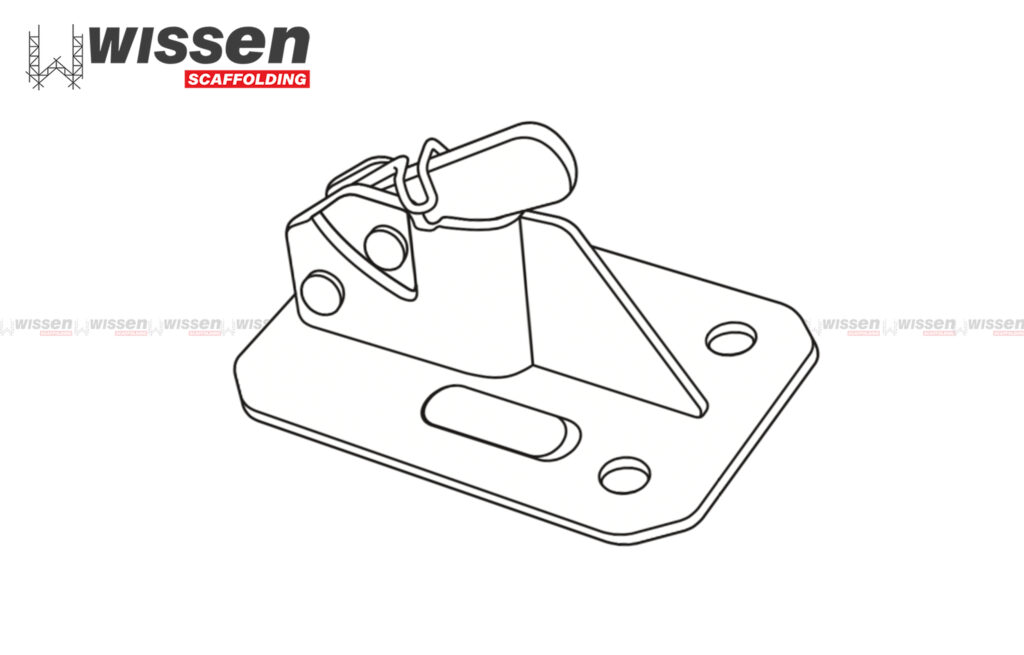

RAPID CLAMP - SHEET METAL
WFW-21
Weight : 0.470 kg.
TIMBER WALLING CLAMP
WFW-22
Weight : 0.500 kg.
WEDGE CLAMP
WFW-23
Weight : 0.370 kg.

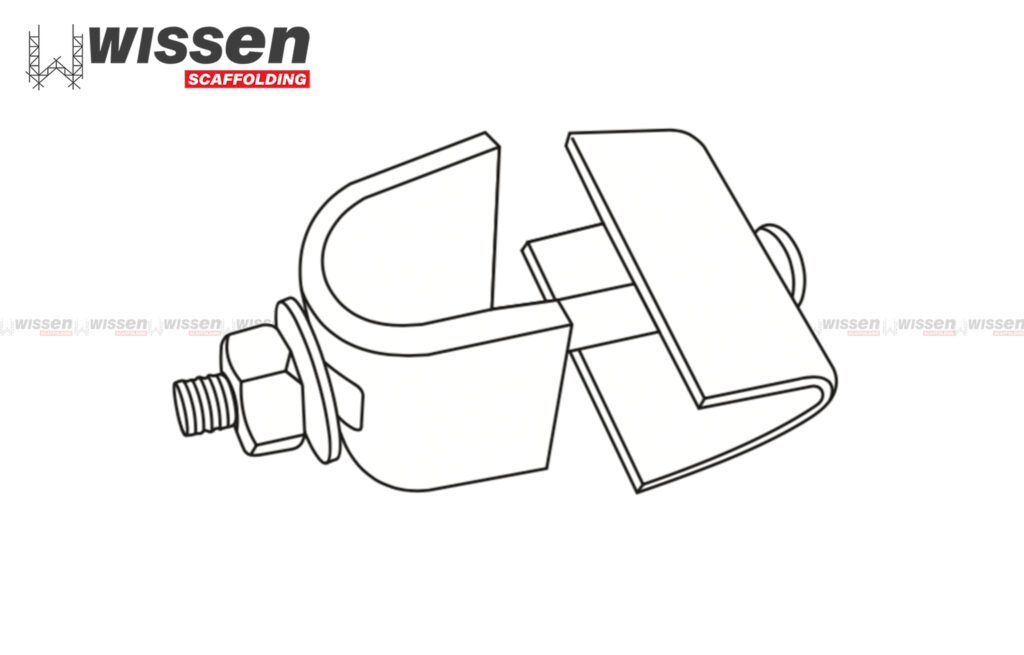

UNIVERSAL CLAMP
WFW-24
Weight : 0.420 kg.
PIN
| Close End (m) | Pin Dia (mm) | Weight (kg) | WFW-25-A | 25 | 0.500 | WFW-25-B | 17 | 0.220 | WFW-25-C | 16 | 0.140 |
|---|
TIE BAR CONNECTOR
| Code | A/F | Pin Dia (mm) | Weight (kg) | WFW-26 | 30 | 100 | 0.400 |
|---|
TENSION PIN
WFW-27
Pin Dia : 19mm
Weight : 0.320 kg.
TEE PIN
WFW-28
Weight : 0.120 kg.
| Code | A/F | Pin Dia (mm) | Weight (kg) | WFW-29 | 30 | 50 | 0.220 |
|---|
